HN1
Hengrui
Availability: | |
---|---|
Quantity: | |
Introduction

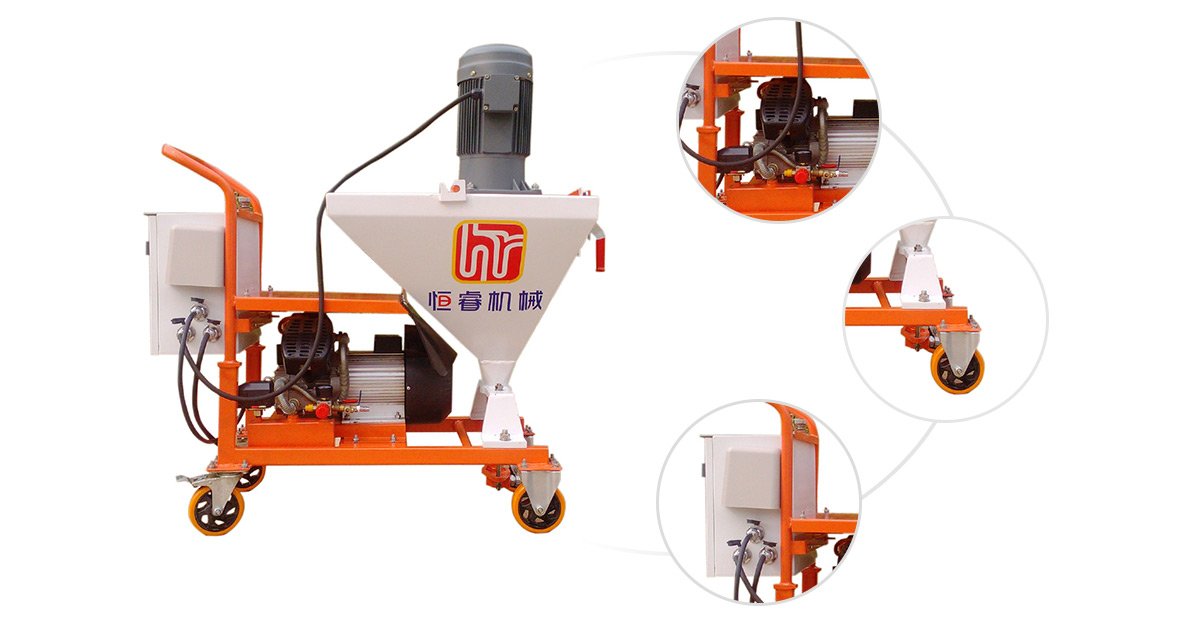

The HN1 putty spraying machine is one of the series sprayer which imported German spraying technology, design reliable, stable, high coating efficiency, light weight, flexible, removable and easy to move, screw pouches durable and patented technology.
Description
◆ Adapt to the spray material: various decorating putty, plastering mortar, overcoating mortar, waterproof coating, fire-proofing coating, anticorrosive paint, paint, glue, etc.;
◆ The DC motor, stepless FM, adjust the speed and flow with pressure to having perfect spraying effect;
◆ Apart from a switch on electric control box, there also is a switch at the gun to realize off and down the machine, easy to operate;
◆ Compact design, motor, electronic control box can be removed for easy site handling;
◆ The normal working area for one day: putty paint spray area of of 1,500-2,000 square meters, latex paint for 2500-3000 square meters.
Parameter
Model | HN1 |
Voltage | 220 V/380V |
Electrical Power | 0.8 kw/1.5kw |
Air compressor power | 3 kw |
Flow | 0-35 L/min |
Hopper volume | 50 L |
Horizontal conveying distance | 30 m |
Vertical conveying distance | 15 m |
Weight | 95 kg/105kg |
Dimension | 1000mm*500mm*1250mm |

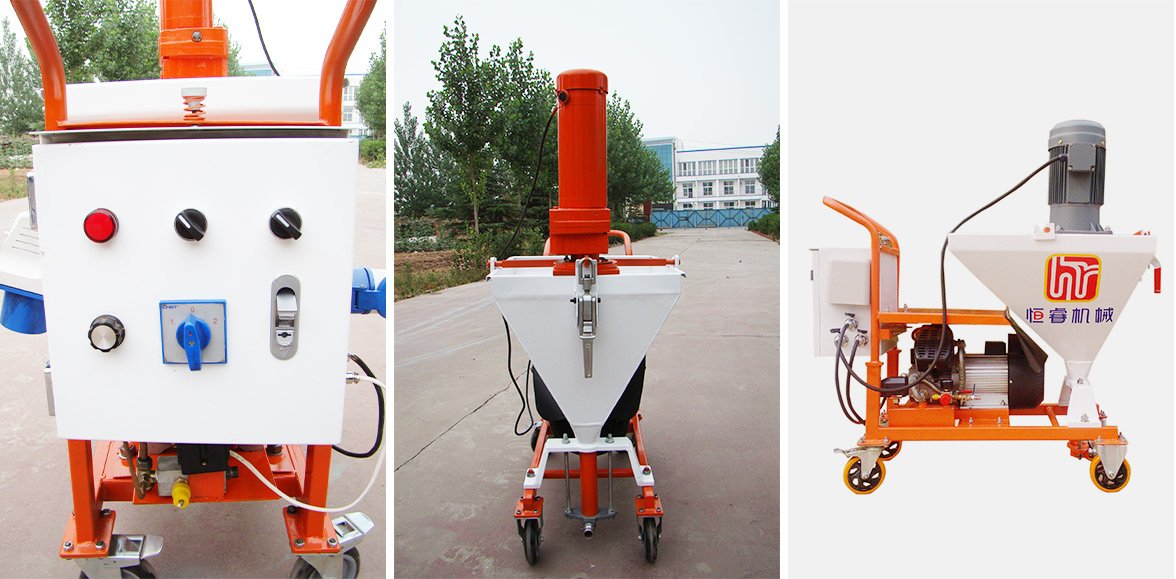

Product case:
