HYP-3 Hydroseeding Machine


Model: hydro seeding
ITEM: HYP-3
Work volume(gal): 350
Tank capacity (㎥): 2
Outlet pressure: 5kg
  • HYP-3

  • Hengrui

Availability:
Quantity:

Feature

 Safe and convenient operation. The machine is equipped with full-featured operation palette, skip-proof operation platform which has removable, 80cm-high, closed fence to guarantee the safety for console operator, spraying gun operator, as well as other staff members.

 Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed state, evenly emitting the mixture of raw materials at one time.

 Strong power spraying seeding machine with pumps has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work.

Strong power, extended distance can be reached  60m, and equipped with two types of spraying guns: vertical and horizontal, which extend maximum  operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.

Description

The application of a seed, fertilizer, wood fibre, and binder slurry using a specially built Hydroseeding Unit. This unit incorporates the seed, fertilizer, wood fibre, and binder in a slurry mixture with water, and then sprays this slurry (or Hydramulch) on the area to be treated via a high pressure pump system.

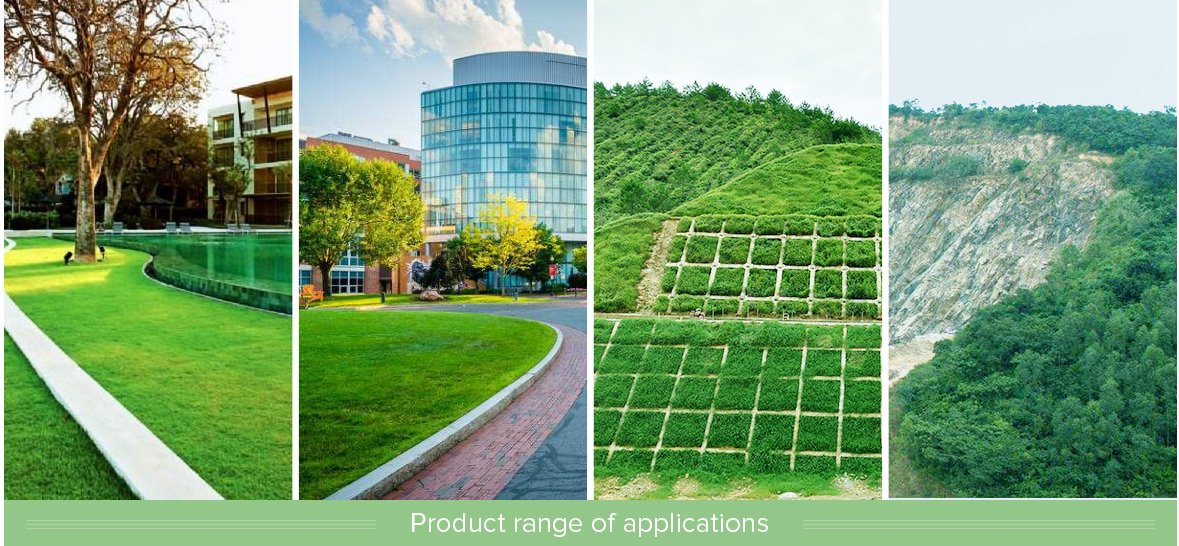

Application

Residential landscape, Commercial landscape, Soil erosion control,mine rehabilitation etc.


Specifications

model

hydroseeding

item

hyp-3

work   volume(gal)

600

tank capacity (L)

3000

outlet   pressure

5kg

power(kw)

20

mixing style

blades and   circular

mixing   direction

bidirectional   rotation

rotation

mechanical   clutch

sprayer gun

snatching ,   pipe gun (option)

mix speed

0-70

power flow(㎥/h)

40

max aggregate   diameter

5mm

jet nozzle   size(mm)

circular:20mm     fan-shaped:20mm

spraying distance(m)

40

spraying area(㎡)

600

weight(kg)

2100

size(m)

3.1*1.7*2.0
