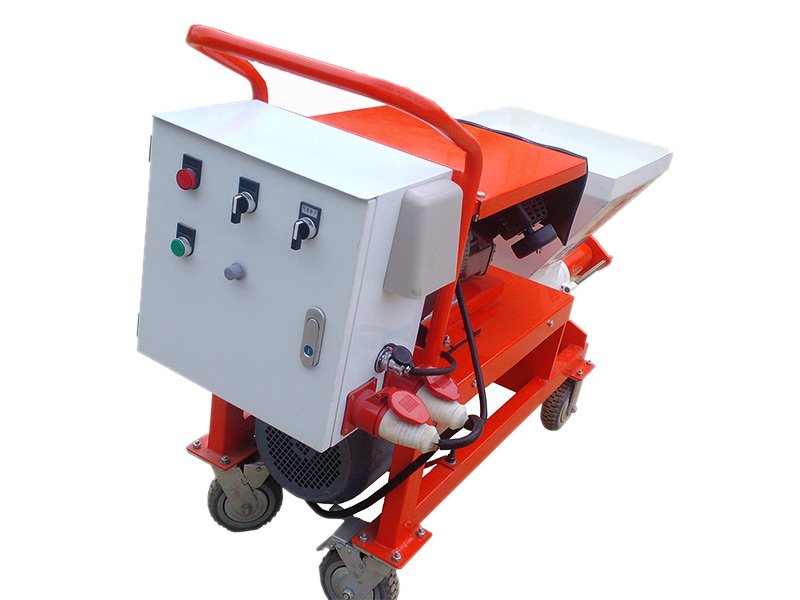

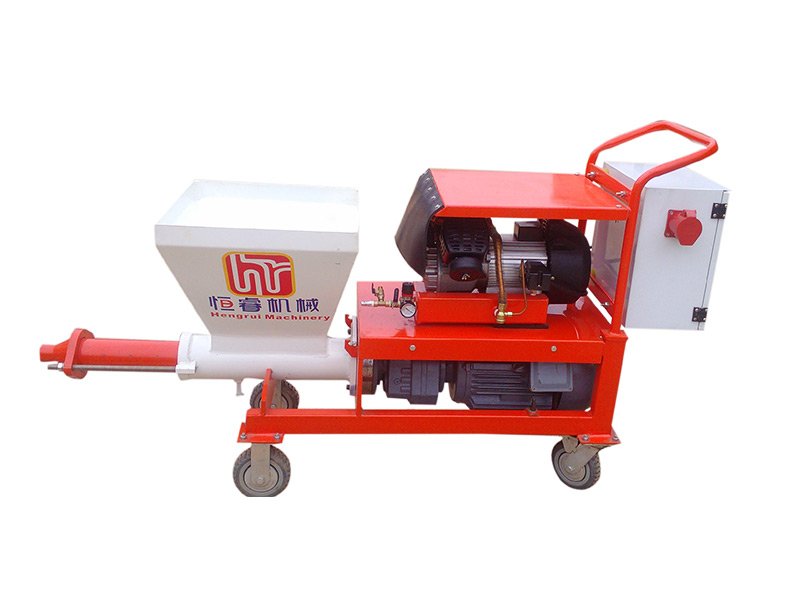

HS2 mortar spraying machine



Model: HS2


Voltage: 380 V/220V


Electrical Power: 4 kw


Flow: 5-80 L/min


Hopper volume: 60 L

  • HS2
  • Hengrui
Quantity:

Introduction

Apply to all the available pumping dry-mixed mortar, such as wall mortar, adhesives, primer, leveling mortar, repair mortar, putty, etc.. Including less than 3mm aggregate mixed mortar, liquid materials, such as paint, primer, the interface agent and so on.


Description

◆ 1.It's a small mortar machine used in conveying, spraying, apply in adhesive mortar, thermal insulation mortar, putty, also can be used in powder paint, waterproof materials, refractory material, etc.. It’s a appropriate machine used in housing protection, whitewash, bottom mortar and so on.


◆ 2.Using frequency conversion technology, stepless FM. It can be bidirectional controlled and adjusted flow by speed controller or pressure and match the wind pressure, then realize continuous conveying and perfect spraying effect.


◆ 3.The equipment have beautiful appearance, and it can be moved easily.


◆ 4.The screw imported German thermal spraying technology, the using life can be comparable with Germany.

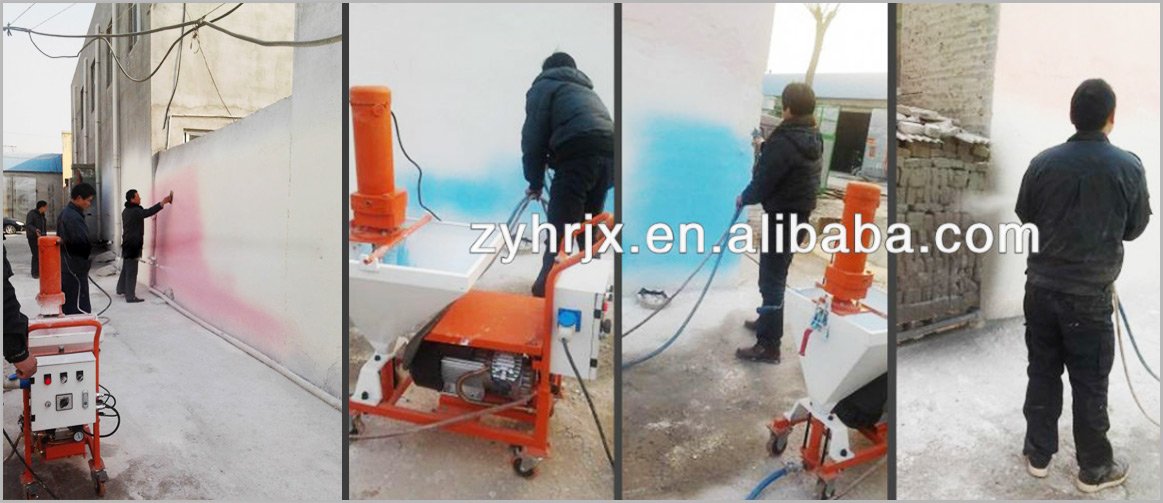

detail03_08

Parameter

Model

HS2



Voltage

380 V/220V



Electrical Power

4 kw



Air Compressor Power

3 kw



Flow

5-80 L/min



Hopper Volume

60 L



Horizontal conveying distance

50 m



Vertical conveying distance

20 m



Weight

240 kg



Dimension

1500mm*500mm*800mm
