HS3 Auto-Mortar Spraying Machine



Model: HS3


Total power machine: 8.5kw


Main mortar: 3P,380V,5.5kw


Total power machine:8.5kw


Hopper Volume:120L

  • HS3
  • Hengrui
Quantity:

Product description

This is a common type of dry mortar spraying machine (Ready-mixed mortar machine). It is widely used in Europe and other developed countries, is a kind of reliable work, excellent performance in mature machine. Mainly used in transportation of spraying with pumpability of dry mortar or materials, such as cement mortar, lime mortar and plaster mortar insulation mortar, mortar, fireproof and refractory coating. Because HS3 by mixing, pumping and spraying integrated design, and has the advantages of small volume, light weight, and with the work efficient, quiet, making HS3 dry powder mortar spraying machine as the preferred equipment for dry mortar spraying.


Feature

  • 1. sets of mixer, self water suction pump, micro air compressor and screw pump in one;

  • 2. small size, light weight, convenient for indoor and outdoor movement, construction;

  • 3. screw pump continuously pump materials to ensure that the material is even and continuous.

  • 4. machine has high efficiency and low noise.

  • 5. the air valve of the spray gun is operated by the remote control machine, which is convenient to operate and save manpower.

  • 6.module is designed with simple operation and convenient maintenance.

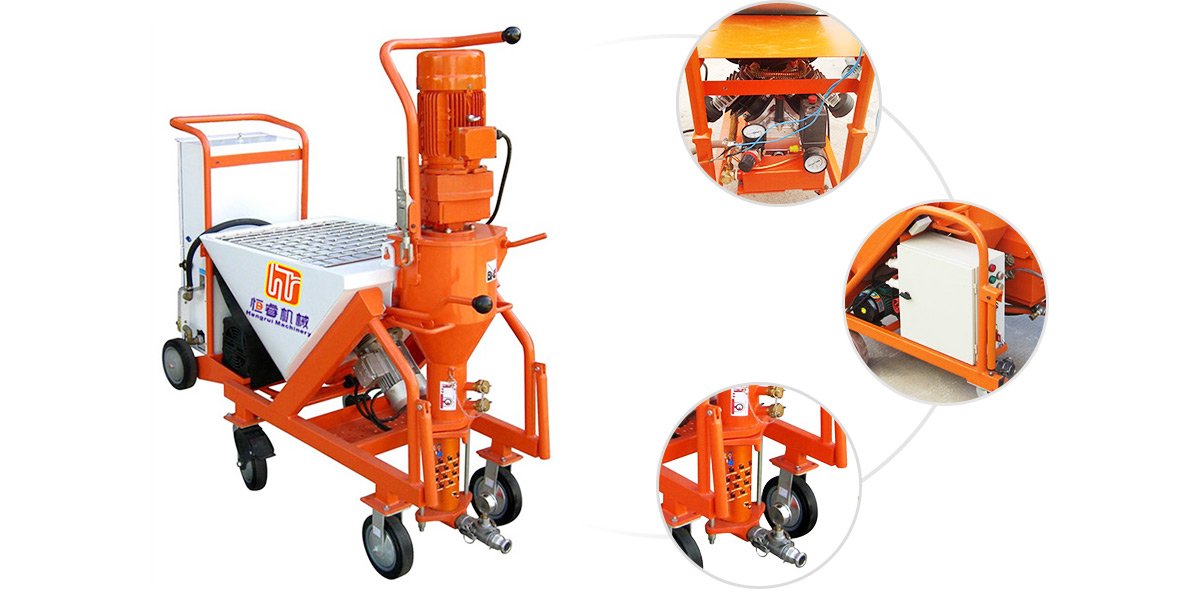

    HS3 Auto-Mortar Spraying Machine.jpg

Parameter

Model

HS3

Rated displacement

30L/Min

Rated working pressure

3Mpa

Total power machine

8.5kw

Main mortar

3P,380V,5.5kw

Hopper Volume

120L

Air compressor displacement

250L/min

Pump discharge

700L/hour

Conveying Hose

25-32mm

Horizontal conveying distance

50 m

Endotracheal diameter

13mm

Vertical conveying distance

10 m

Screw speed

380 RPM

Warranty prriod

12Months

Weight

280 kg

Dimension

1240mm*680mm*1550mm
