HYP-2
Hengrui
Availability: | |
---|---|
Quantity: | |
Feature
Safe and convenient operation. The machine is equipped with full-featured operation palette, skip-proof operation platform which has removable, 80cm-high, closed fence to guarantee the safety for console operator, spraying gun operator, as well as other staff members.
Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed state, evenly emitting the mixture of raw materials at one time.
Strong power spraying seeding machine with pumps has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work.
Strong power, extended distance can be reached 60m, and equipped with two types of spraying guns: vertical and horizontal, which extend maximum operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.
Description

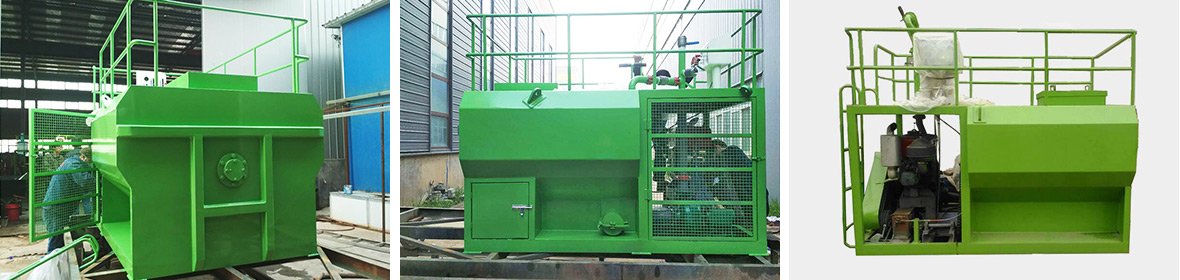

The application of a seed, fertilizer, wood fibre, and binder slurry using a specially built Hydroseeding Unit. This unit incorporates the seed, fertilizer, wood fibre, and binder in a slurry mixture with water, and then sprays this slurry (or Hydramulch) on the area to be treated via a high pressure pump system.
Application
Residential landscape, Commercial landscape, Soil erosion control,mine rehabilitation etc.
Specifications
Model | hydro seeding | |
Item | hyp-2 | |
Work volume(gal) | 350 | |
Tank capacity (L) | 2000 | |
Outlet pressure | 5kg | |
Power(kw) | 20 | |
Mixing style | blades and circular | |
Mixing direction | bidirectional rotation | |
Rotation | mechanical clutch | |
Sprayer gun | snatching , pipe gun (option) | |
Mix speed | 0-70 | |
Power flow(㎥/h) | 40 | |
Max aggregate diameter | 5mm | |
Jet nozzle size(mm) | circular:20mm | fan-shaped:20mm |
Spraying distance(m) | 40 | |
Spraying area(㎡) | 400 | |
Weight(kg) | 1800 | |
size(m) | 2.5*1.7*2.0 |
