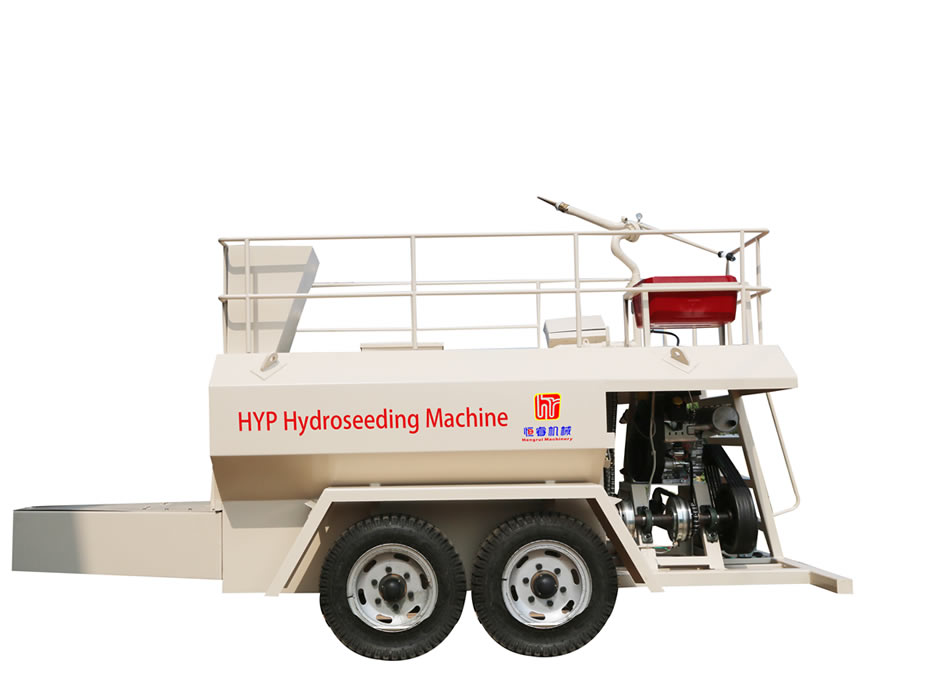

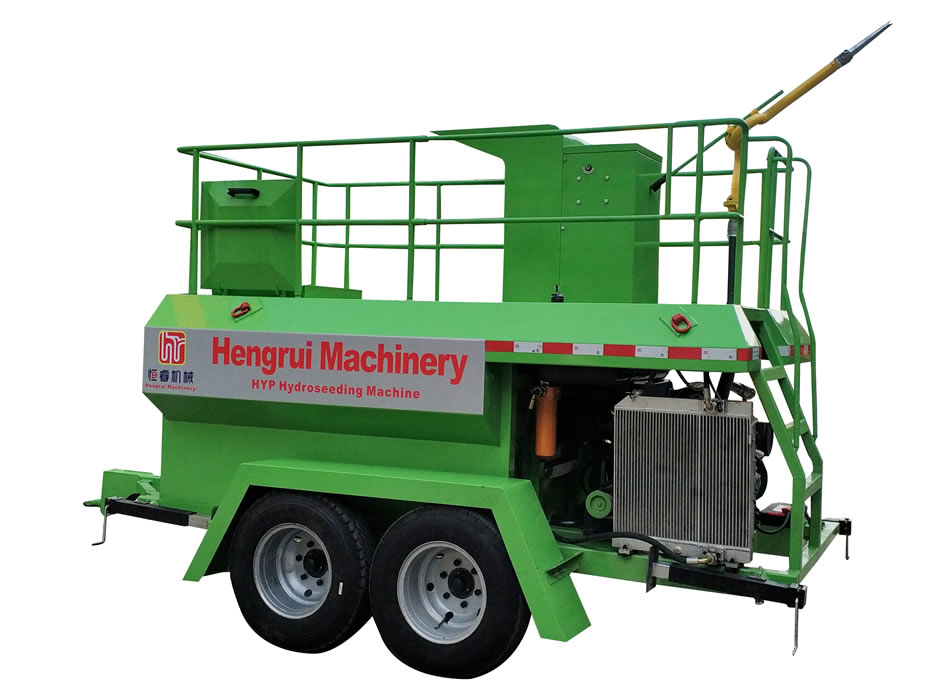

HYP-3G Hydroseeding Machine

  • HYP-3G
  • Henan Hengrui Machinery
Availability:
Quantity:

Feature

1. Stirring system: It adopts the hydraulic blade stirring and circulating jet mixing double stirring mode, which is enough to ensure that the mixed liquid is completely fully suspended in the spraying process, and the mixed raw materials can be uniformly sprayed out at one time.

2. Spray gun system: The equipment has strong power, the lift range is more than 45m, and it is equipped with a variety of spray guns such as standing type and tube belt type, which can extend the working range by 60m; close-range spraying can use fan-shaped nozzle or mist spray. To meet the needs of a variety of different sprays.

3. Console: The console is easy to use and can be rotated freely up and down for easy operation by operators.

4. Workbench: The non-slip work platform has a detachable 80cm high-enclosed protective fence to ensure the safety of the console and the gun operator and other staff. The workbench can also temporarily stack goods to improve construction efficiency.


Product Description

The application of a seed, fertilizer, wood fibre, and binder slurry using a specially built Hydroseeding Unit. This unit incorporates the seed, fertilizer, wood fibre, and binder in a slurry mixture with water, and then sprays this slurry (or Hydramulch) on the area to be treated via a high pressure pump system.

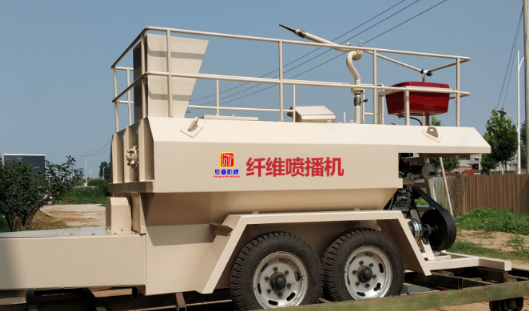

hydroseeding machine


Application

Residential landscape, Commercial landscape, Soil erosion control,mine rehabilitation etc.

Hydroseeding machine Application

Specifications

Model:

HYP-3G

Brand:

HengRui

Tank Capacity: (in Liters)

3000

Pumping Capacity: (In m3/hr)

40

Outlet Pressure: (In Mpa)

0.6

Maximum Solid Content:  ( % )

15

Maximum Particulate Matter:  (mm)

5

Mixing Type:

Hydraulic agitation

Agitator Shaft Speed: ( rpm )

0-70

Powered By: Diesel Engine ( Model )

Yanmar

Power Rated:  ( kw )

27

Revolution : ( rpm )

2200

Maximum Spray Distance: ( meter )

30

Maximum Lift Height: ( meter )

70

Dimension (mm): ( L x W x H )

4300*1800*2300

Weight:  ( kg )

2200
