Hydroseeding Machine With Wheels

Hydraulic spraying machine with pumps has two powerful drivers, high-performance dedicated pumps, and high ability for material delivering, best applied to the conditions like stable soil slope above 45 degree, high-filled embankment slope and man-made soil slope.
  • HYP HYDROSEEDING WITH WHEELS

  • Hengrui

Availability:
Quantity:

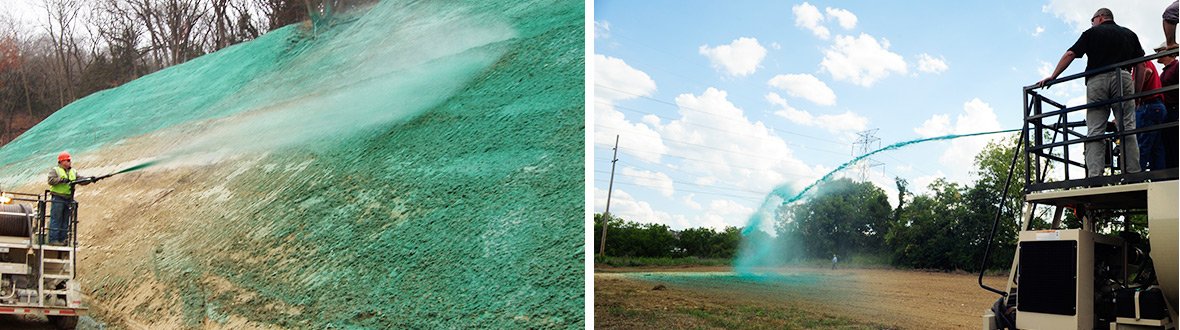

Feature

Safe and convenient operation. The machine is equipped with full-featured operation palette, skip-proof operation platform which has removable, 80cm-high, closed fence to guarantee the safety for console operator, spraying gun operator, as well as other staff members.

 Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying mixture in the planting process is in fully suspended and fully mixed state, evenly emitting the mixture of raw materials at one time.

 Strong power spraying seeding machine with pumps has wide usage, not only can be applied in spraying planting for rice, grass, tress, flowers, seeds and other crops, but also in irrigation, fertilize, pesticide spraying and other daily care, soil improvement work.

Strong power, extended distance can be reached  60m, and equipped with two types of spraying guns: vertical and horizontal, which extend maximum  operation scope from 200m to 300m; fan-shaped spray nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.


Product Description

The application of a seed, fertilizer, wood fibre, and binder slurry using a specially built Hydroseeding Unit. This unit incorporates the seed, fertilizer, wood fibre, and binder in a slurry mixture with water, and then sprays this slurry (or Hydramulch) on the area to be treated via a high pressure pump system.

Application

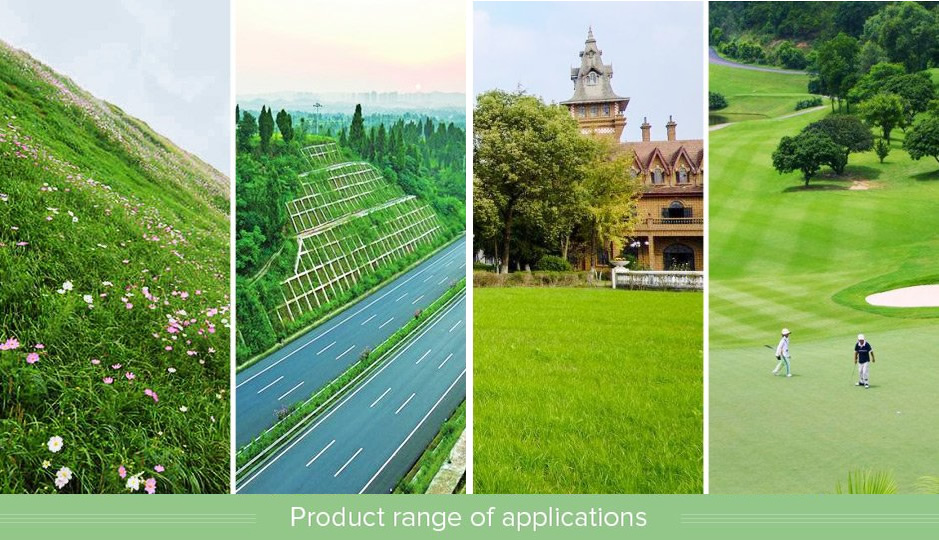

Residential landscape, Commercial landscape, Soil erosion control,mine rehabilitation etc.

hydroseedingmachine application

Specifications

Model





Item

hyp-3

hyp-4

hyp-5

hyp-8

Work volume(gal)

580

 840

1200

1900

Tank capacity (㎥)

3

4

5

8

Outlet pressure

5kg

5kg

6kg

6kg

Power(kw)

20

20

36.2

36.2

Mixing style

blades and circular

 Mixing direction

bidirectional rotation

Rotation

mechanical clutch

Power flow(㎥/h)

40

Max aggregate diameter

5mm

Jet nozzle size(mm)

circular:20mm

fan-shaped:20mm



Spraying distance(m)

40

40

60

60

Spraying area(㎡)

600

800

1000

1400

Net weight(kg)

2100

2100

2300

2800

Size(m)

3.0*1.7*2.0

3.0*1.8*2.1

4.2*2.0*2.4

5.2*2.0*2.2
